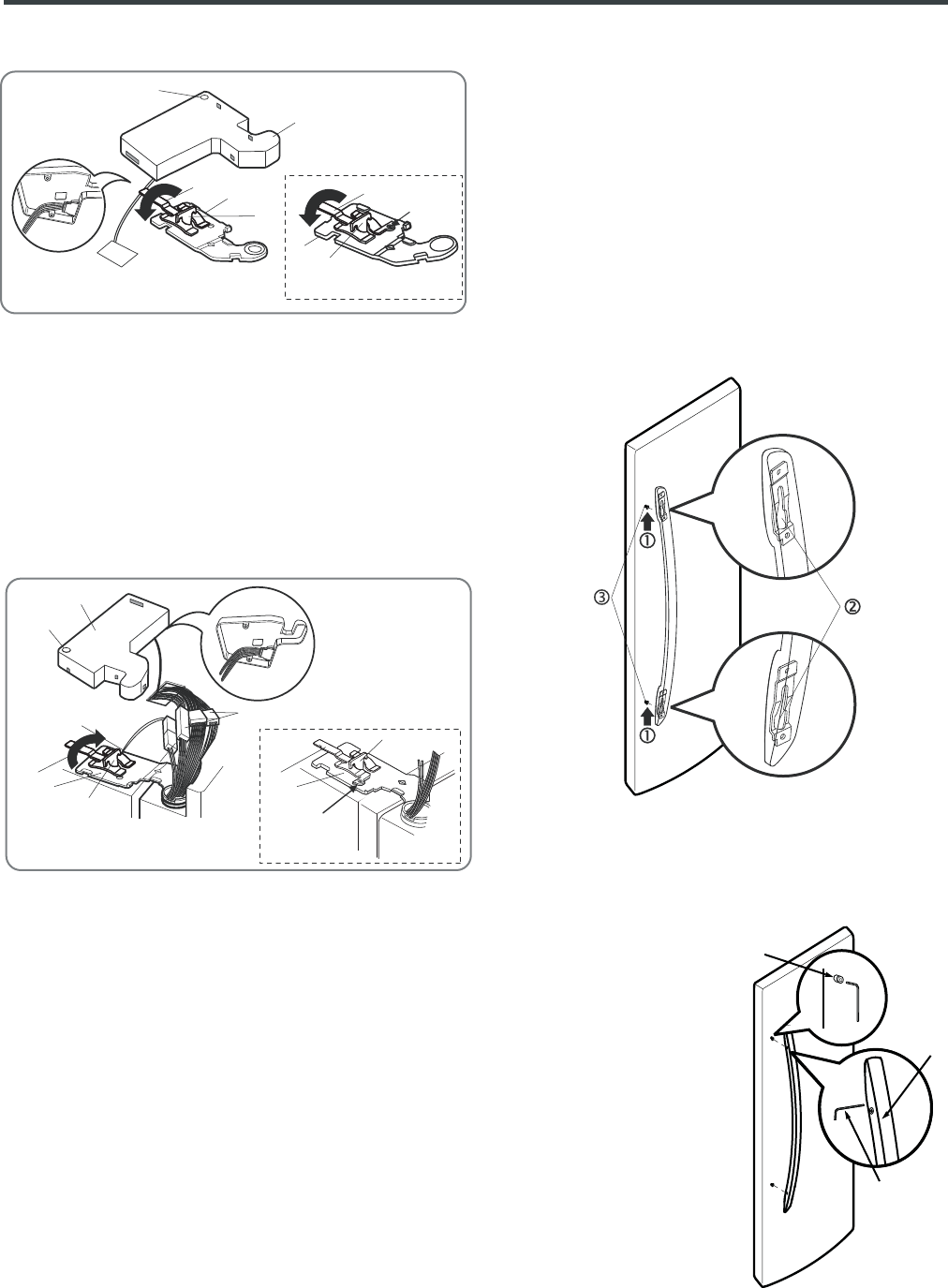

Reinstalling the right (Refrigerator) door
Reinstalling the left (Freezer) door
1. Place the door onto the lower hinge pin.
2. Fit top hinge (4) over hinge lever latch (5) into place.
Rotate lever (3) counterclockwise to secure.
Regardless the type of hinge lever (3); type1: without
rivet or type 2: with rivet the removal process is the same.
3. Hook tab on switch side of corner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
hinge
1. Feed the water tubes through the lower hinge pin and
place the door onto the lower hinge pin.
2. Fit top hinge (6) over hinge lever latch (7) and into place.
Rotate lever (5) clockwise to secure hinge.
Regardless the type of hinge lever (5); type1: without
rivet or type 2: with rivet the removal process is the same.
3. Install the grounding screw (4) and connect all the wire
harnesses (3).
4. Hook tab on door switch side of cover (2) under edge of
wire opening in cabinet top. Position cover into place. Insert
and tighten cover screw (1).
5. Reconnect the water tubes by inserting the tubes into the
connectors.
NO TE:
NOTE:
2. HANDLE REMOVAL
Identify you handle type
The Grasp the handle tightly with both hands and slide
the handle up (1) (this may required some force).
The keyhole slots (2) on the back of the handle allow
the handle to separate from the mounting screws (3).
It could be damaged and broken when
you hit with hammer while you remove and attach
the handle.
When you assemble or disassembly
handle, you must push and pull with moment force.
• Type 1
CAUTION:
CAUTION:
• Type 1
NOTE: It is ALWAYS recommended to remove the refrigerator
doors when it is necessary to move the refrigerator through a
narrow opening. If necessary, follow the directions below to
remove the door handles.
Loosen the set screws with a 3/32” (2.38 mm) Allen wrench
and remove the handle.
the handle mounting
fasteners need to be tightened
or moved, use a 1/4” (6.35 mm)
Allen wrench.
NOTE: If
Mounting
fasteners
Set screw
Allen Wrench
