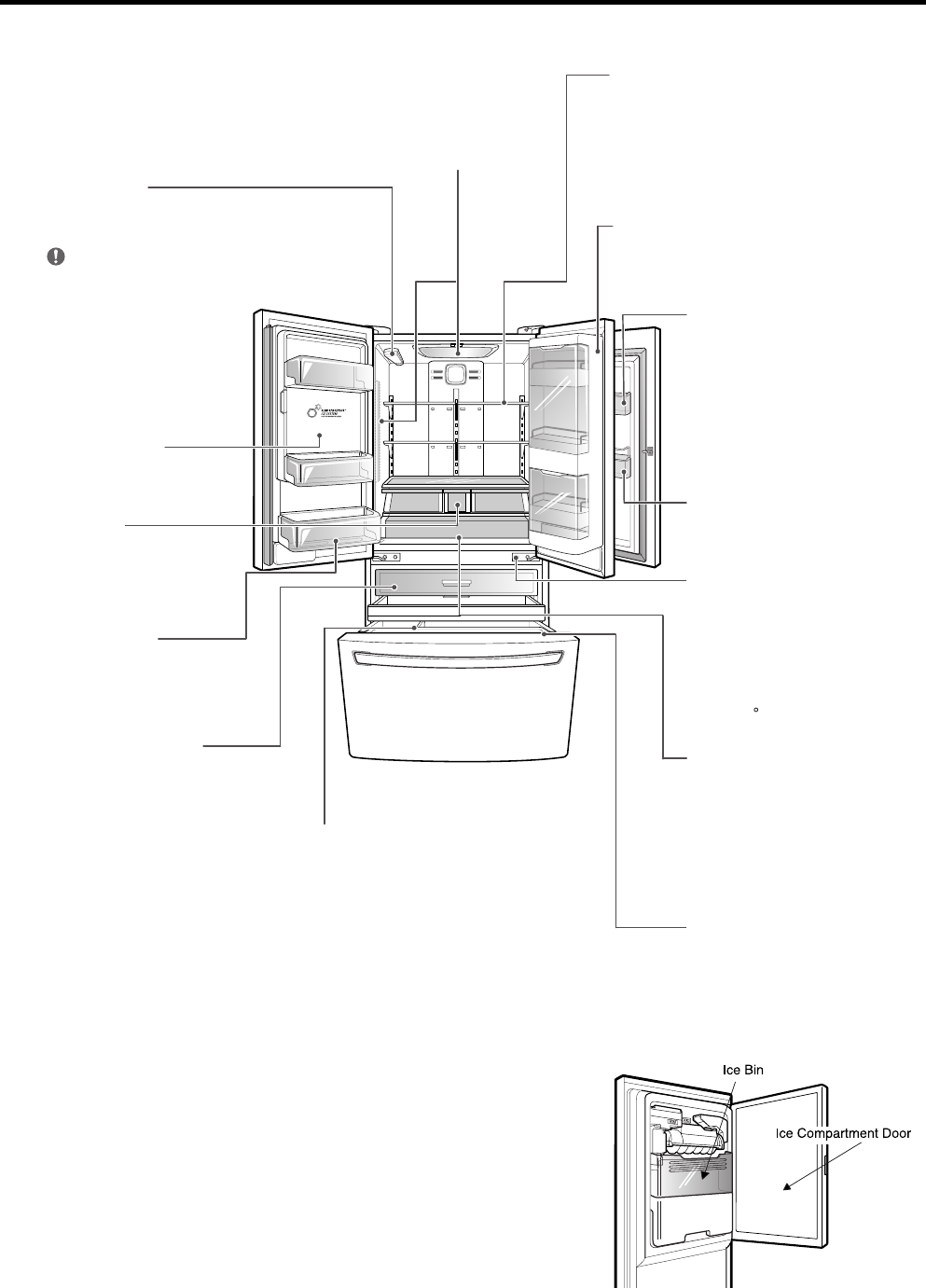

2. PARTS IDENTIFICATION
Water filter
The water filter purifies
water.
The filter should be replaced
every 6 months. Please refer
to°Replacing the filter°
in this manual for details.
* This function may not be
available, depending on
the model.
NOTE
Indoor ice bin
100 ice cubes are
automatically produced.
Crisper
The crisper controls humidity
and helps vegetables and
fruit to stay crisp.
Fixed door bin
The fixed door bin is used
to preserve chilled food or
drinks that are of a suitable
size for storing in this bin.
Pull out Drawer
It is a convenient feature
that allows you to fill large
containers such as the extra
bin and It is useful to store.
Dura Base¤ Divider
This is a convenient feature that
allows you to fill large containers,
such as an ice chest, cooler or
pitcher, with ice.
F-Basket
This is a convenient
feature that allows you
to fill small frozen food,
beverage to needed
quick cooling.
Glide’N’Serve
When you want to store
food items at a much
lower temperature, you
can use the temperature
controller to maintain the
lowest possible chilling
temperature (without
freezing).
LED interior lamps
The interior lamps light up the
inside of the refrigerator.
Grab-N-Go Case
The convenience of a "soft cool"
storage area and ease in spreading
product stored in this area.
Condiment Bin
Cheese &Butter Bin
Cheese & Butter and
Condiment bins, that
are specially designed
for food that can be
stored at a warmer
temperature. This makes
spreading butter and
slicing cheese easier.
Adjustable refrigerator
shelf
The refrigerator
compartment shelves
are adjustable to allow
flexibility for storage
needs. Preserve large
size food or containers.
Auto closing hinge
The refrigerator doors
and freezer drawers
close automatically when
you push them slightly.
(The door only closes
automatically when it is
open at an angle of less
than 30 .)
