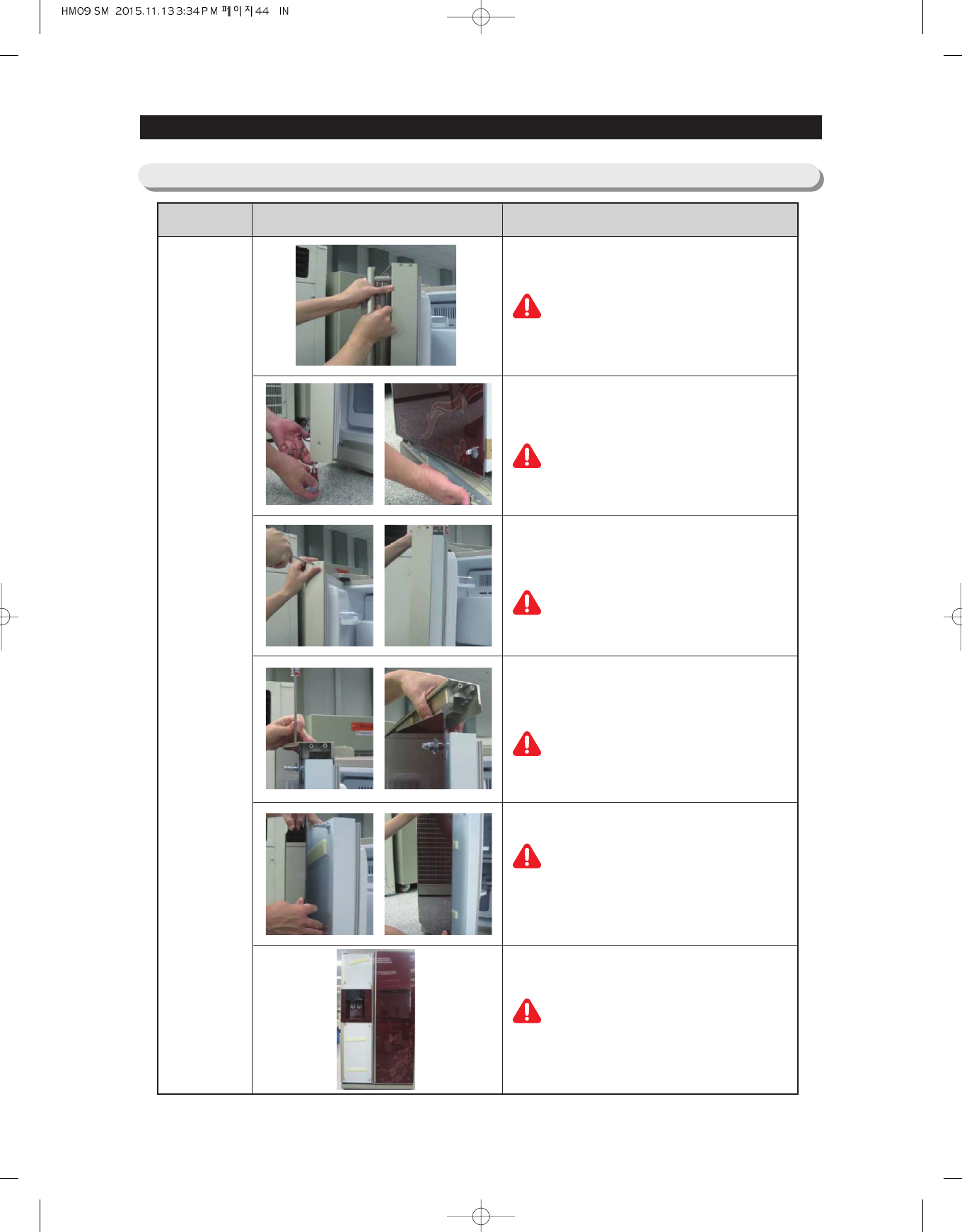

DISASSEMBLY & REASSEMBLY
1. Disassemble handles with a small flat-head
driver as above.
PART NAME FIGURE
Freezer
Door
DESCRIPTION
2. Detach the lower Door sash with unscrewing 6
places using a small Phillips head driver as
shown.
3. Disassemble the inner door sash with
unscrewing 5 places using a Phillips head
driver as shown.
4. Disassemble the upper door sash with
unscrewing 4 places using a Phillips head
driver as shown.
5. Detach Glasses from the door as shown.
6. After replacing glasses, assemble all in a
reverse order.
Be careful not to scratch.
Be careful not to scratch.
Be careful not to scratch.
Please be careful not to damage
the GLASS
Please be careful not to damage
the product
Be careful not to scratch.
3-9-1) GLASSES on the Freezer door (RS21H*L**-TRIMKIT)
