Frigidaire Bf Page 22

Workshop Manuals
6-18
Component Teardown
Fresh Food Compartment
Refrigerated Ice Maker
Flex-Tray
IMPORTANT NOTE ABOUT ICE MAKER GASKETS:
All gasket seals in the ice maker housing assembly are
critical to ensure proper management of air flow, moisture
and defrost water. Anytime a gasket seal is broken, the
affected gasket must be inspected for signs of wear or
deformation and must be replaced if necessary. Failure to
inspect and replace gaskets may compromise proper func-
tion of the ice maker and result in undesirable water leaks.
Ice Bucket Removal
To service the Fresh Food Flex Tray ice maker you must
first remove the ice bucket. Open the left fresh food
compartment door and pull the ice bucket out of the ice
maker housing assembly located in the top left corner of
the food compartment. Figure 6-52.
Ice Maker Removal
Disconnect power from the unit before performing this
procedure.
1. Remove the two screws holding the Housing Front
Cover to the Ice Maker Housing. Figure 6-53.
2. Pull the bottom left of the Housing Front Cover for-
ward so that the notch is clear of the raised edge around
the front opening of the Housing.
3. Pull the Housing Front Cover downward to remove.
4. Remove the screw holding the Harness Cover in
place, and remove the Harness Cover. Figure 6-54.
5. Disconnect the two wiring harnesses.
6. Grip the ice maker underneath the ice tray as shown
in figure 6-55, and pull the ice maker forward to slip it
off the four shoulder screws. Unhook the wiring har-
ness from the top of the ice maker frame, cut the wire
ties holding the harness to the ice maker if present, and
remove the ice maker from the unit.

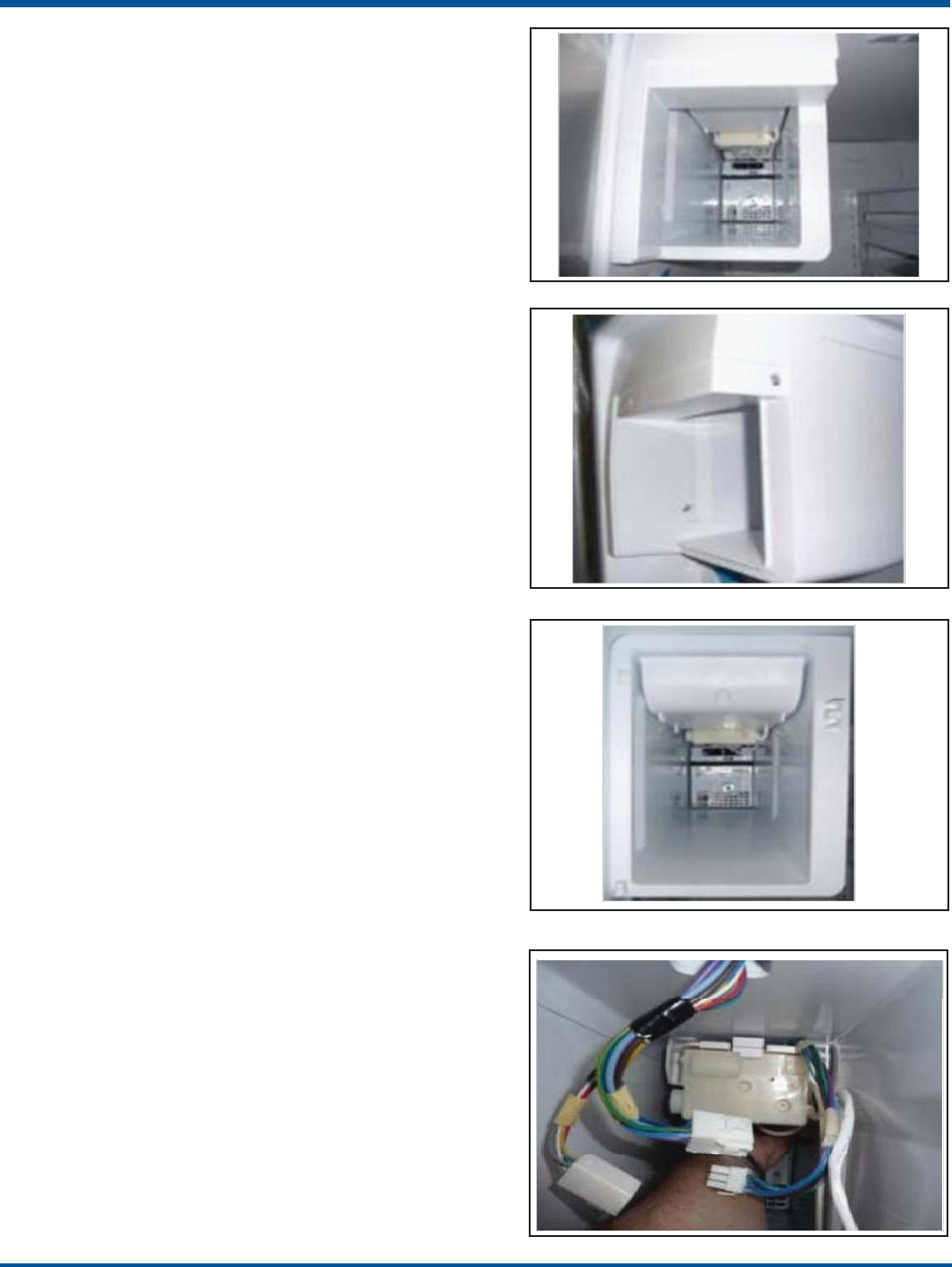

Figure 6-52
Figure 6-53
Figure 6-54
Figure 6-55
