LOWERING THE LEVELING LEGSLOWERING THE LEVELING LEGS
All four leveling legs must contact the floor to
support and stabilize the full weight of the
refrigerator. Rollers are for moving the refrig-
erator, and not for permanent support.
Use a socket wrench to turn the leg levelers on
both sides of the refrigerator to the right (clock-
wise) until the refrigerator weight is supported
by the legs. The rollers should be off the floor.
To avoid cabinet damage, do not apply more
than 50 in/lbs (58 cm/kg) of torque to the
leveling legs.
1122
1. Rear leveling legs
2. Front leveling legs
LEVELING THE REFRIGERATORLEVELING THE REFRIGERATOR
NOTE: Door panels must be installed before
leveling.
1.Open the doors and place a level on top of
the refrigerator frame. Check to see if the
refrigerator is level from left to right.
2.Use the leveling bolts to adjust the leveling
legs until the refrigerator is level from left
to right.
3.Place a level on the shelves and check to
see if the refrigerator is level from front to
back.
4.Use the leveling bolts to adjust the leveling
legs until the refrigerator is level from front
to back.
5.Make sure that all four leveling legs con-
tact the floor and support the full weight of
the refrigerator.
6.Make a final check to see that the refrig-
erator is level.
ADJUSTING THE DOORSADJUSTING THE DOORS
Door AlignmentDoor Alignment
Use the following steps to adjust the door
alignment to the left, right, in, or out.
1.Inspect the spacing of the gap between
the freezer and refrigerator doors. Make
sure that the spacing between the doors is
the same distance at the top and bottom.
11
22
22

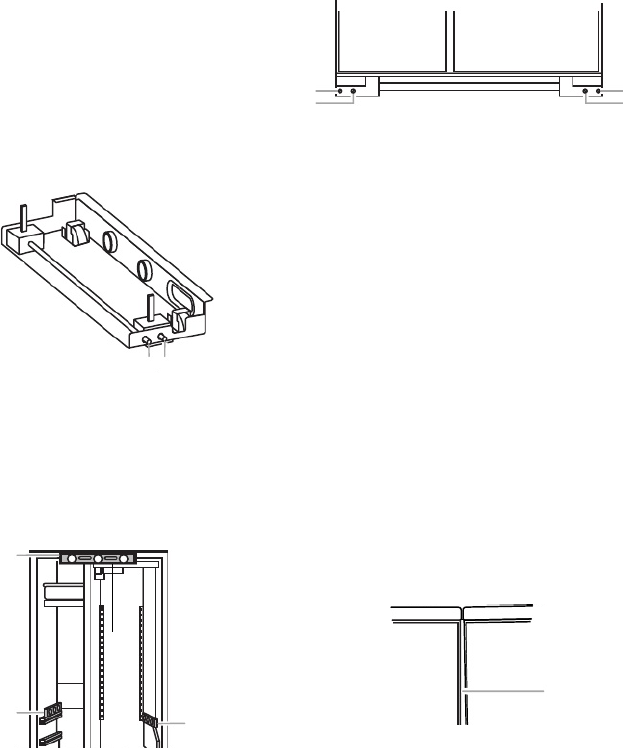

1. Level to check left to right leveling
2. Level to check front to back leveling
11
22
11
22
1. Rear leveling bolt
2. Front leveling bolt
11
1. Uneven door gap
2.If the door gap is uneven, the side trim
must be removed so that you can see the
entire door gasket liner. Remove the six
phillips screws holding the side trim.
