II. GENERAL INFORMATION
II. a-INTRODUCTION:
This manual applies to the following models only:
TU Series Full-Size Undercounter Refrigerators
TU044HT, TU072HT & TU100HT
TU Series Full-Size Undercounter Freezers
TU044LT & TU072LT
II. b-MODEL DESIGNATIONS:
TU 044 HT
Positions 1 2 3
Position 1: TU = Traulsen Undercounter
Position 2: 044 = 44” Length Model
072 = 72” Length Model
100 =100” Length Model
Position 3: HT=Refrigerator
LT=Freezer
II. c-WIRING DIAGRAM:
Refer to the wiring diagram for any service work per-
formed on this unit. A copy is placed on the unit when
shipped. Also, a copy of the wiring diagram is located on
page 7 of this manual. Should you require another copy,
or a wiring diagram for an older production unit, please
contact Traulsen Service at (800) 825-8220. You should
have model and serial number of unit prior to calling. See
page 1 for serial tag location and information.
II. d-INSTALLATION:
Generally TU Series Full Size Undercounter refrigerators
and freezer units are installed by the dealer, or other
parties contracted by the dealer or owner. Detailed in-
stallation instructions are included along with each unit
when shipped.
II. e-CLEANING:
Detailed cleaning instructions are included with each unit,
however special care MUST be given to the condenser
coil. The condenser coil must be cleaned at a minimum
of every six months. This can be done with a vacuum
cleaner using a brush attachment, or a stiff brush or whisk
broom. For more information on cleaning, please refer
to the Owner’s Manual.
II. f-TOOL REQUIREMENTS:
For most jobs a standard set of hand tools, a VOM and
AC current tester, along with a temperature tester or ther-
mometer are adequate tools. However, in some cases
the following additional tools may be required as well:
II. f-TOOL REQUIREMENTS (cont’d):
● Refrigeration Guage Manifold
● Refrigeration Reclaiming Equipment
● Acetylene Torch
● Anti-Static Grounding Kit (TL 84919)
● Nitrogen Bottle With Gauges
● Thin 5/16” Open End Wrench
● Refrigerant Reclaim Unit
II. g-REFRIGERATION SYSTEM-THEORY OF
OPERATION:
The refrigeration system is the mechanism whereby heat is
transferred from the cabinet to the outside air. It works under
the principle that the heat moves from hot to cold as it tries to
establish equilibrium.
The microprocessor control signals a need for heat to be removed
from the cabinet. The compressor begins by compressing the re-
frigerant gas as it is discharged. The high pressure refrigerant
now circulates through the condenser, removing heat from the
refrigerant and condensing it into a liquid. From there the refrig-
erant ows to the lter drier which removes all traces of moisture
and particles from the system.
After the lter drier, the refrigerant passes through a “metering
device”. Traulsen uses a thermostatic expansion valve to regulate
the ow of refrigerant into the evaporator coils.
In the evaporator coil, heat is transferred from the cabinet to the
refrigerant, which changed from a cold liquid to a warm low pres-
sure gas. When the desired cabinet air temperature has been
reached, the microprocessor control shuts off the compressor.
See gure 2.
II. h-AIR FLOW REQUIREMENTS:
To assure optimum performance, the condensing unit of your
Traulsen unit MUST have an adequate supply of air for cool-
ing purposes. Therefore, the operating location must allow a
minimum of 12” clearance in front of the louvers to allow for
unrestricted air ow to the condensing unit.

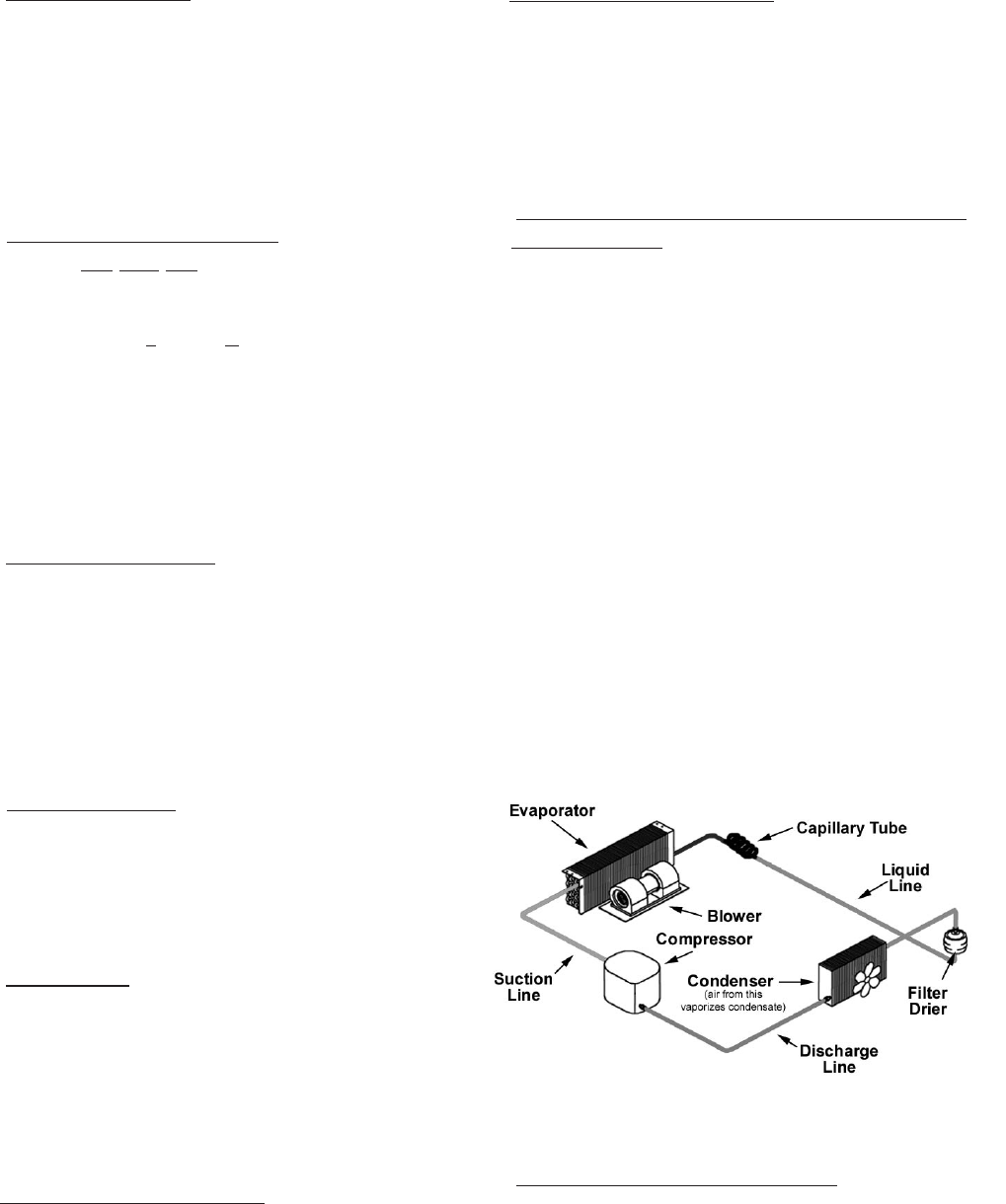

Figure 2
