-4-
III. a-SYSTEM(cont’d):
To gain full access to the refrigeration system from the
side, remove the side cover by removing the screws.
When nished, place the louver assembly back into posi-
tion and replace the side panel. Secure these in place
using the previously removed screws.
III. b-EVAPORATOR HOUSING COVER:
If the unit is supplied with a marine work top, rst remove
the work top by removing the mounting screws on the
left and right side of the work top. Next, remove the #3
Phillips head screws from the top of the evaporator and
cabinet space cover.
NOTE: The cover is sealed with RTV which may need
to be scored before removing the cover.
Reverse the procedure when done, to reinstall.
III. c-ACCESSING START COMPONENTS:
The start components are mounted on the compressor.
To access the start components, rst remove the louver
assembly and side panel as instructed in section III. a.
The start components are mounted on the back side of
the compressor.
IV. RE-HINGE DOOR(S)
IV. a-DOOR RE-HINGE INSTRUCTIONS:
Your Traulsen Full Size Undercounter model door(s)
are eld re-hingeable. If re-hinging is required, please
contact our Service Department at 800-825-8220 for
re-hinge instructions.

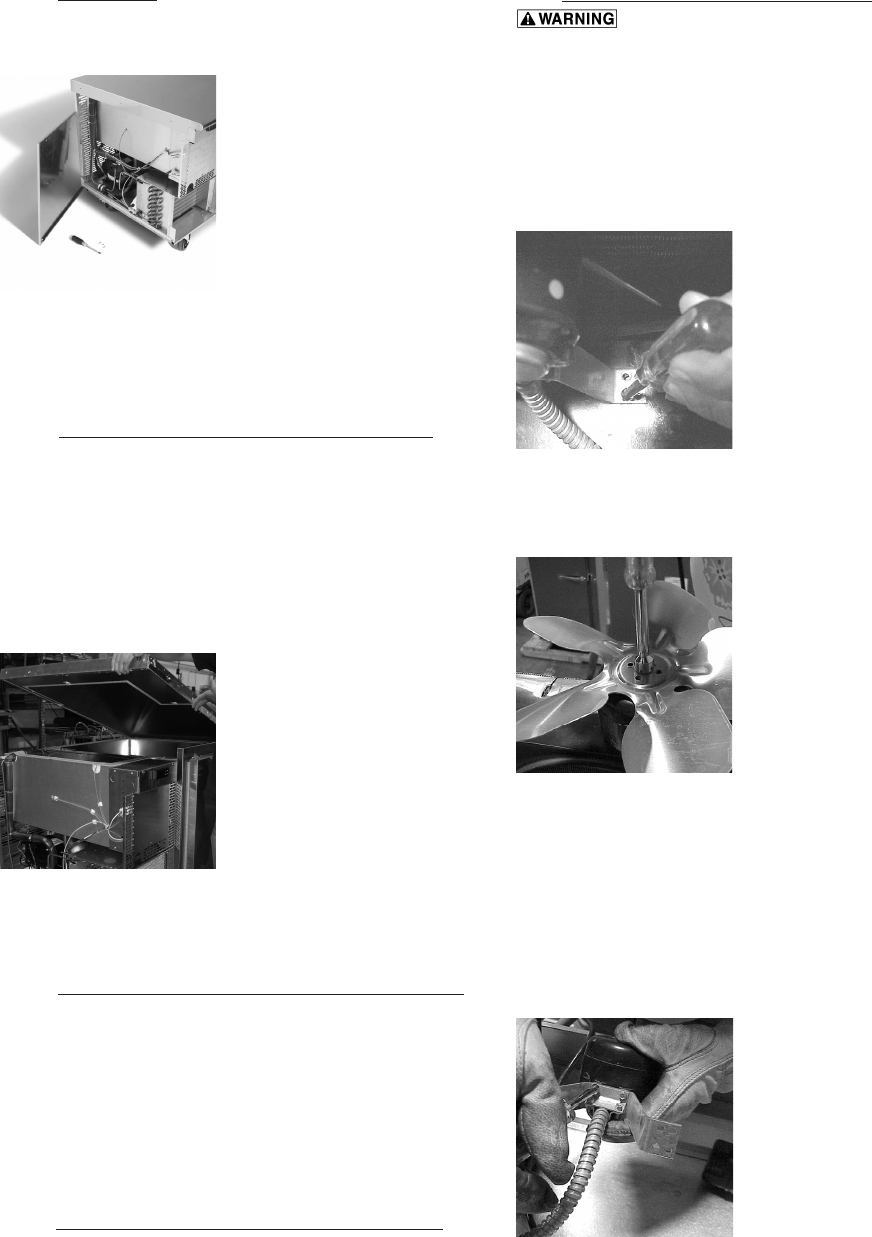

Illlustration III. 2
III. SERVICE ACCESS (cont’d)
Illustration III. 1
V. CONDENSER FAN MOTOR OR BLADE
V. a-REPLACEMENT INSTRUCTIONS:
Disconnect the electrical power to the machine
and follow lockout/tag out procedures.
Step 1: Remove the louver assembly as outlined in section III.
a. To gain access through left side.
Step 2: Remove the screws holding the fan motor bracket to the
compressor mounting base (see Illustration V.1).
Step 3: Remove the blade from the motor shaft by removing the
nut (see Illustration V. 2).
NOTE: Install the concave side of the fan blade toward the
motor. If the blade is all that is being replaced, stop here and
reverse procedure to install.
Step 4: Remove the mounting bracket from the motor (see
Illustration V. 3).
Step 5: Disconnect lead wires at the compressor junction box.
Step 6: Reverse the procedure to install.
Step 7: Reconnect power to the unit.
Illustration V. 1
Illustration V. 2
Illustration V. 3
