Samsung Rf220Nctasr Page 31

Workshop Manuals
33

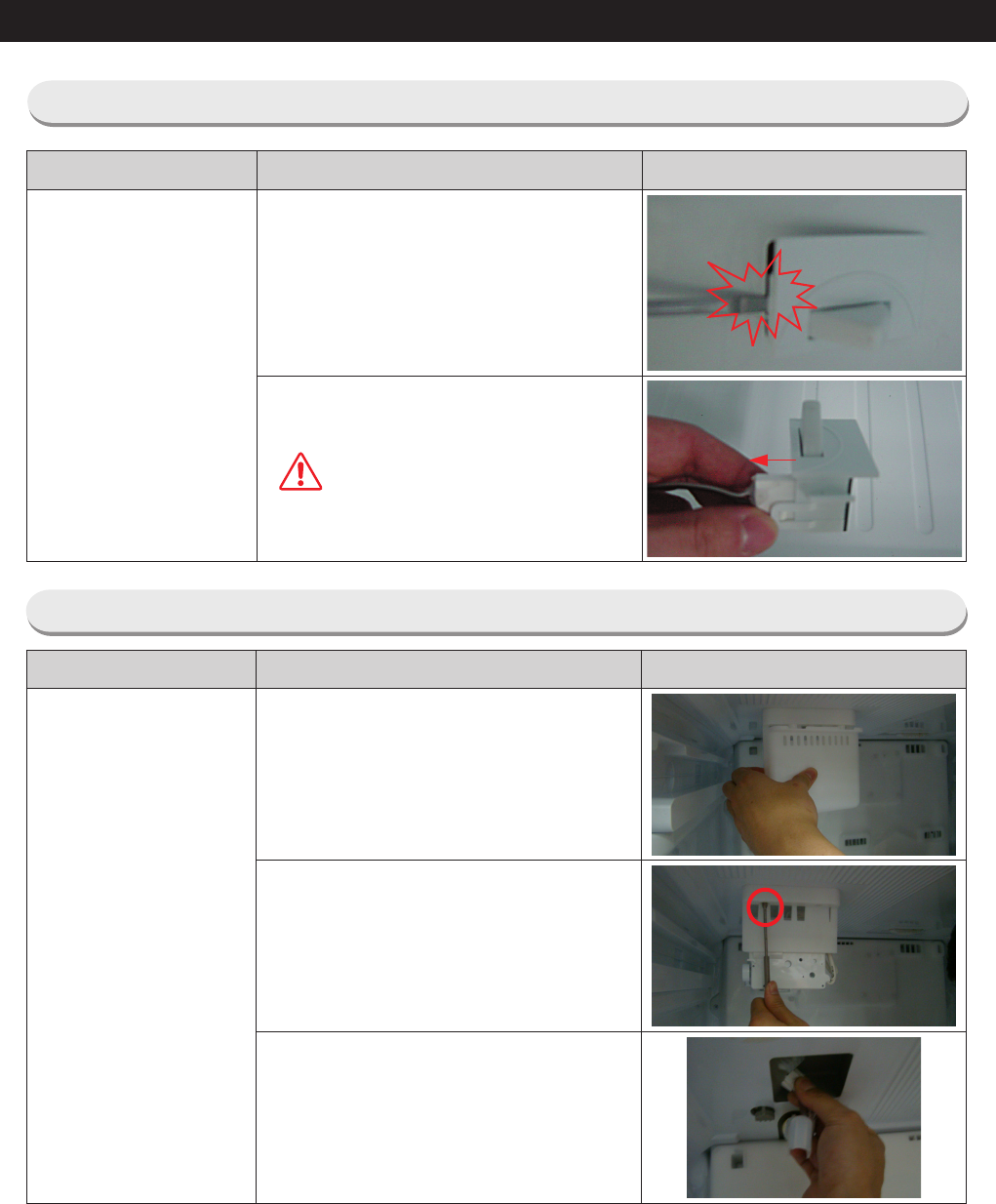

DISASSEMBLY AND REASSEMBLY
3-16) Door Switch In Freezer
Part Name How To Do Descriptive Picture
Door Switch In Freezer
1. Remove the freezer drawer bin by using a
flat-blade(-) screwdriver. (Refer to Section
3-19 Freezer Door). Then remove the
freezer light switch.
2. Disconnect the housing connector part.
CAUTION
Before doing the above, make
sure that the unit is unplugged.
3-17) Evaporator Cover In Freezer
Part Name How To Do Descriptive Picture
Evaporator Cover In
Freezer
1. Remove the ice maker by pulling it out.
2. Loosen the 1 screws, which fix the Ice maker
3. Disconnect the housing connector part.
