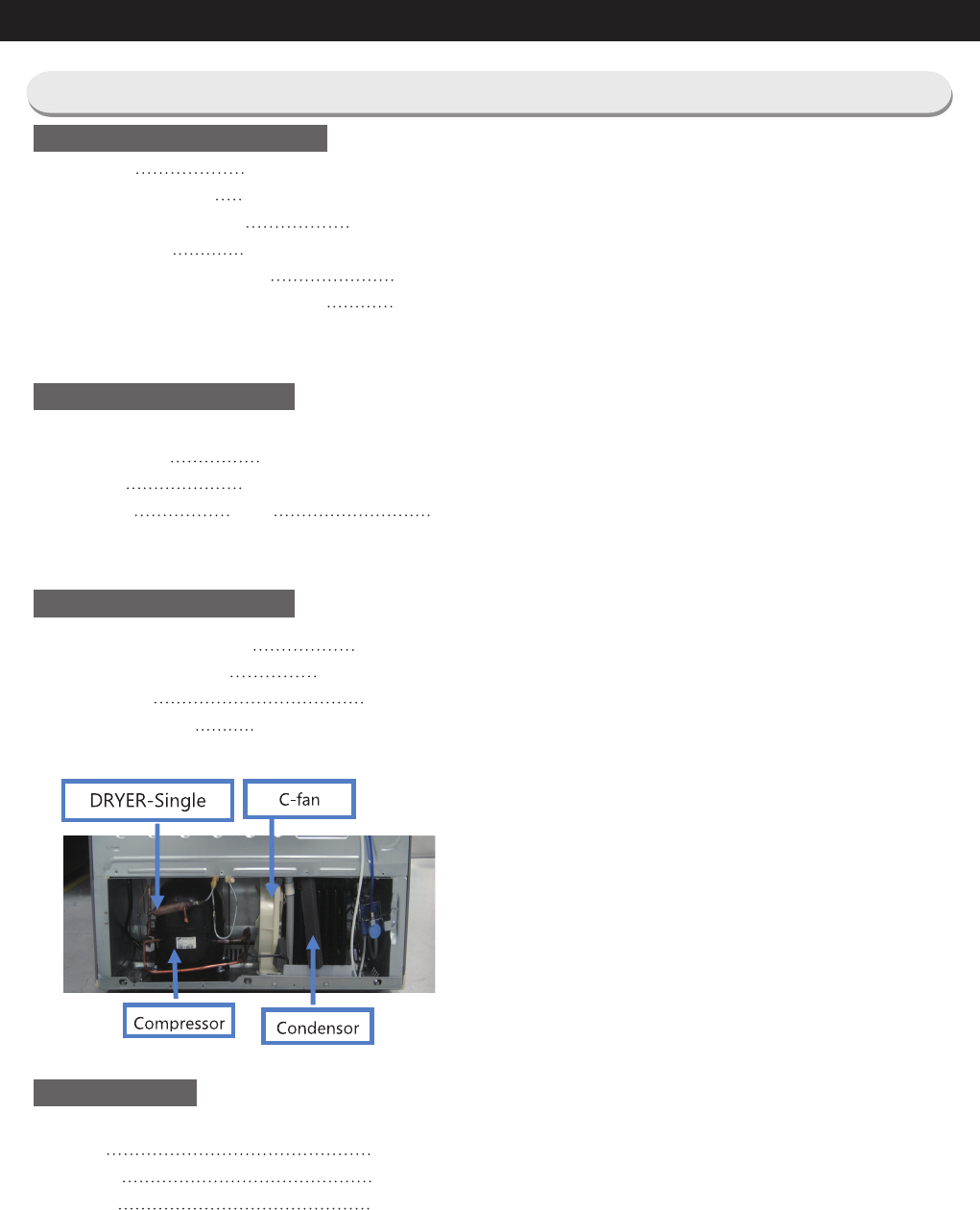

PRODUCT SPECIFICATIONS

2-1) Specifications

Defrost Control From 12 to 30hrs(comp. run time)

Thermo Bimetal Protector 140°F(60°C)(off) 104°F(40°C)(on)

Defrost Thermistor(502AT) 50°F(10°C)(off)

Electrical Rating AC115V 60Hz 11.6 Amps

Maximum Current Leakage 0.25 mA

Maximum Ground Path Resistance 0.1 Ohm

Refrigerator,°F 44°F(7°C) ~ 34°F(1°C)

Freezer,°F 5°F(-15°C) ~ -8°F(-23°C)

Run Time, % < 40 < 80

Refrigerant Charge (R134a) 4.94oz(140g)

Compressor(MKV172C-L2J) 1314 Btu/hr(0.385kw)

Compressor oil Freol 5

∝

15c

R Capillary tube(Dia, Length) 0.030 ” x 138 ” (0.75 mm x 3,500 mm)

Clearance must be provided for air circulation.

AT TOP 1"(25mm)

AT SIDES 1"(25mm)

AT REAR 2"(50mm)

ELECTRICAL SPECIFICATIONS

NO LOAD PERFORMANCE

REFRIGERATION SYSTEM

INSTALLATION
