DISASSEMBLY AND REASSEMBLY
3-19) Machine Compartment

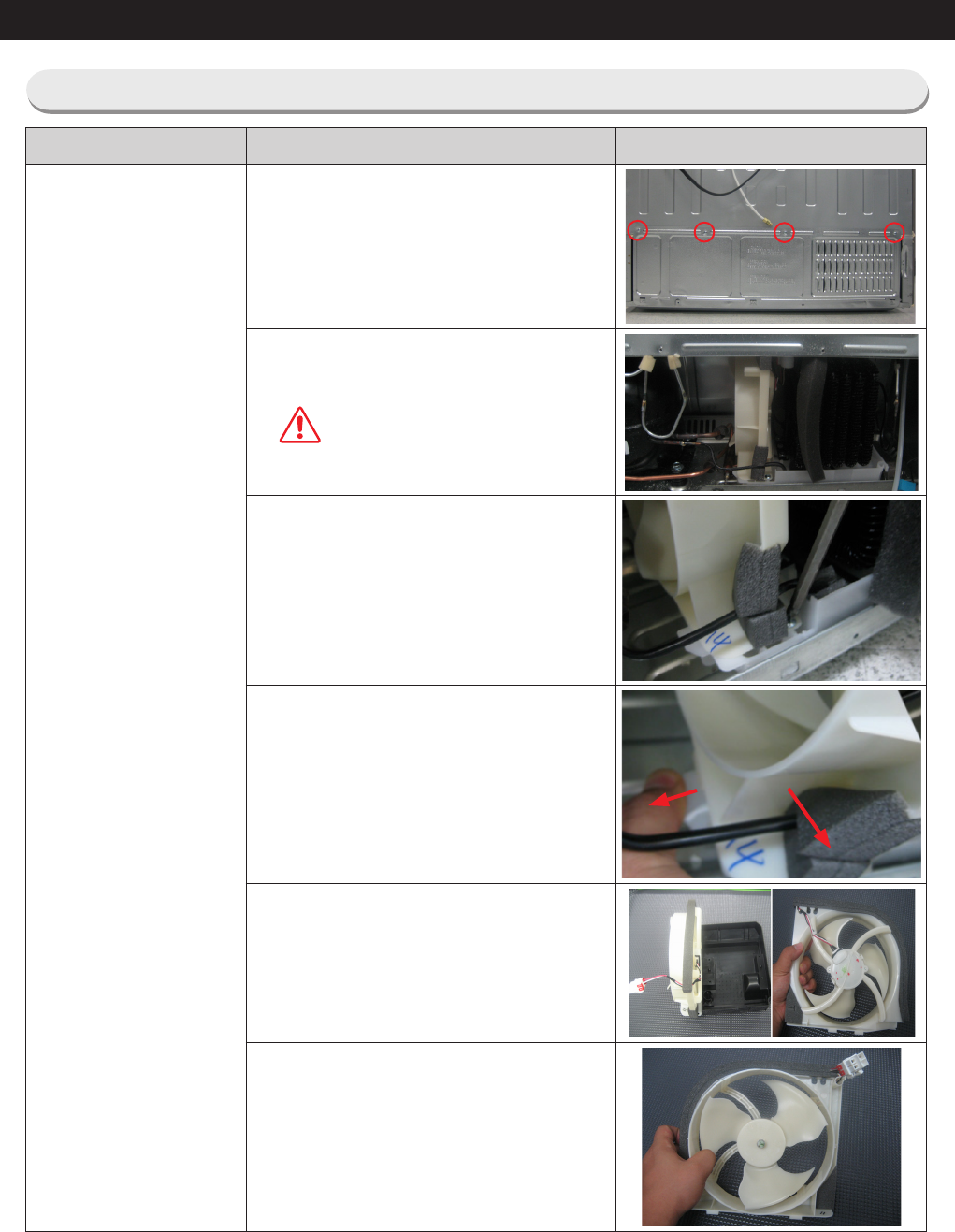

Part Name How To Do Descriptive Picture
Motor Fan
1. Unscrew 4 screws of cover compressor.
2. Disengage the housing connector.
(Refer to the picture)
CAUTION
Before doing the above, make
sure that the unit is unplugged.
3. Unscrew 1 screw fixed Support Circuit Motor
and Tray drain.
4. Remove the hooker of support circuit motor
by lifting the hooker up and pulling it out.
5. Bend the pipe to avoid to stuck the pipe and
Support Circuit Motor. Turning the Support
Circuit motor as picture shown and pulling it
out.
6. Remove the hook of the motor cover with a
flat-blade (-) screwdriver and then remove
the motor.
