4. TROUBLESHOOTING
4-1. Functions for failure diagnosis
4-1-1. Test mode (manual operating / manual defrosting function)
• If CoolSelect
+
Key + Fridge Key on the front of panel are pressed simultaneously for 8 seconds , it will be
chang to the test mode and all displays on the front of panel will be off.
• If any key on the front of panel is pressed within 15 seconds after the test mode, it will be operated as below
sequence :
Forced Operation (FF) → CoolSelect Room OFF Forced Operation (OF c) → 2 Comp Simultaneous Forced
Operations (Fr) → Forced F/CV/R (Fan) Defrosting (Fd)
• If any key on the front of panel is not pressed within 15 seconds after the test mode, the test mode will be
canceled and it will be returned to previous mode.

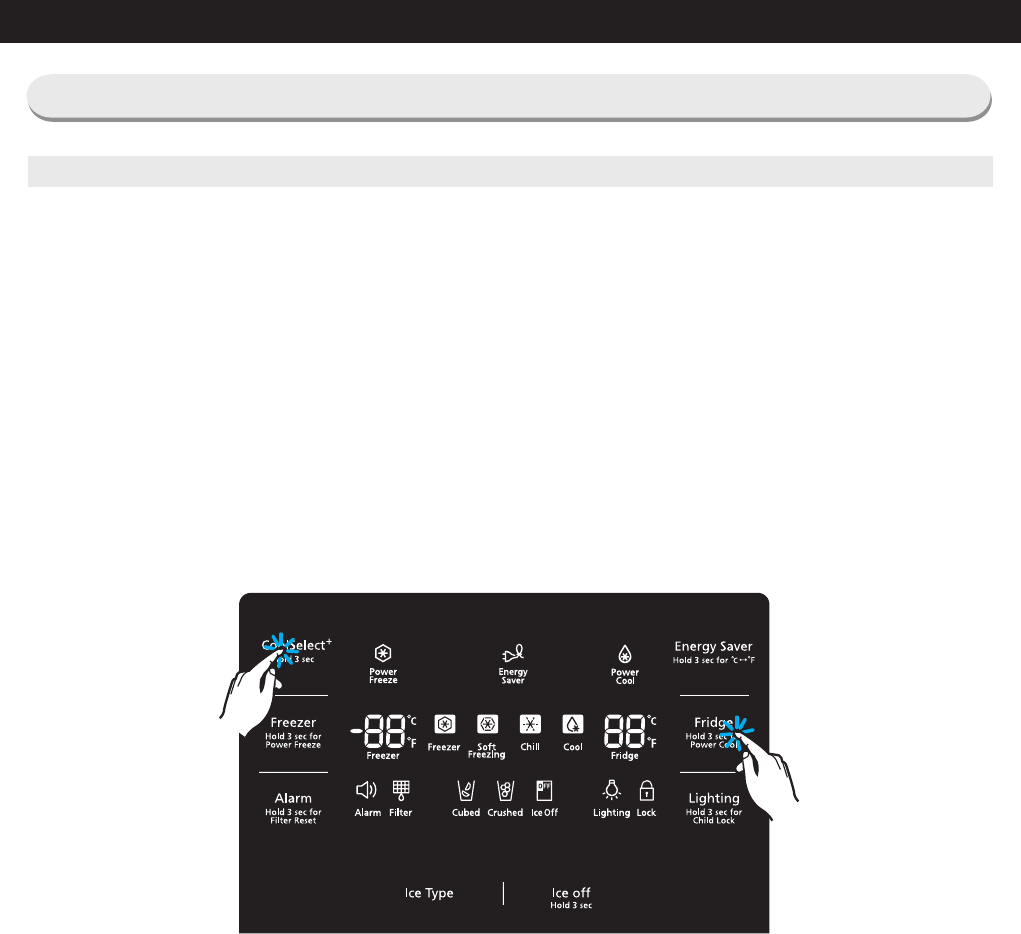

① CoolSelect
+
Key + Fridge Key are pressed simultaneously for
8 seconds, (displays are all off)
It will be changed to the test mode (manual operation) by pressing any key
①
1) Manual operation function
Previous page
Next page
