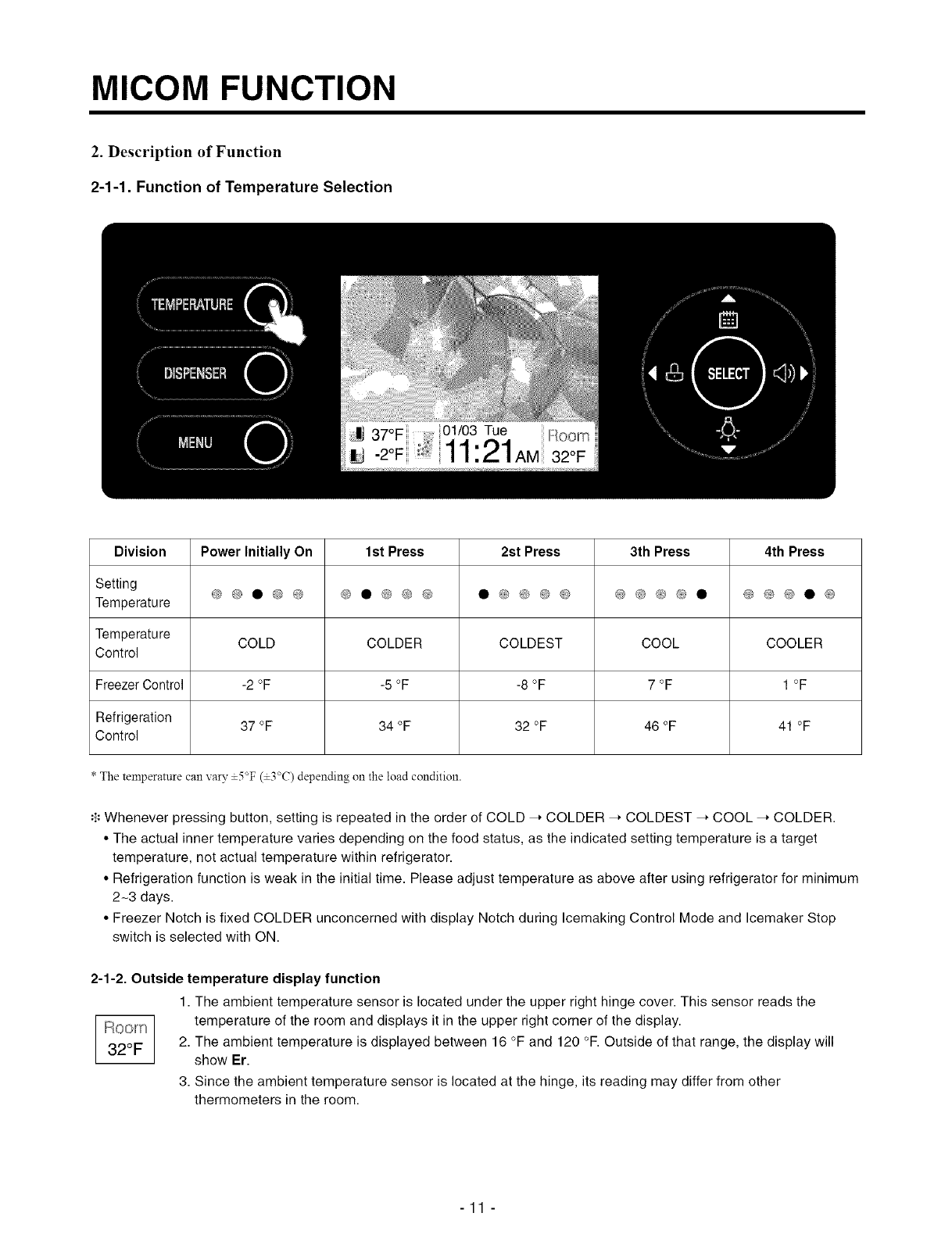

MICOM FUNCTION
2. Description of Function
2-1-1. Function of Temperature Selection
Division Power Initially On 1st Press 2st Press 3th Press 4th Press
Setting
Temperature
Temperature COLD COLDER COLDEST COOL COOLER
Control
Freezer Control -2 °F -5 °F -8 °F 7 °F 1 °F
Refrigeration 37 °F 34 °F 32 °F 46 °F 41 °F
Control
*The telnperature can vary ±5'>F(±3°C) depending on the load condition.
Whenever pressing button, setting is repeated in the order of COLD _ COLDER -_ COLDEST -_ COOL -_ COLDER.
• The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target
temperature, not actual temperature within refrigerator.
• Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum
2-3 days.
• Freezer Notch is fixed COLDER unconcerned with display Notch during Icemaking Control Mode and Icemaker Stop
switch is selected with ON.
2-1-2. Outside temperature display function
1. The ambient temperature sensor is located under the upper right hinge cover. This sensor reads the
temperature of the room and displays it in the upper right corner of the display.
2. The ambient temperature is displayed between 16 °F and 120 °F. Outside of that range, the display will
show Er.
3. Since the ambient temperature sensor is located at the hinge, its reading may differ from other
thermometers in the room.
-11 -
