Lg Lsc27990Tt Page 91

Workshop Manuals
TV-RADIO

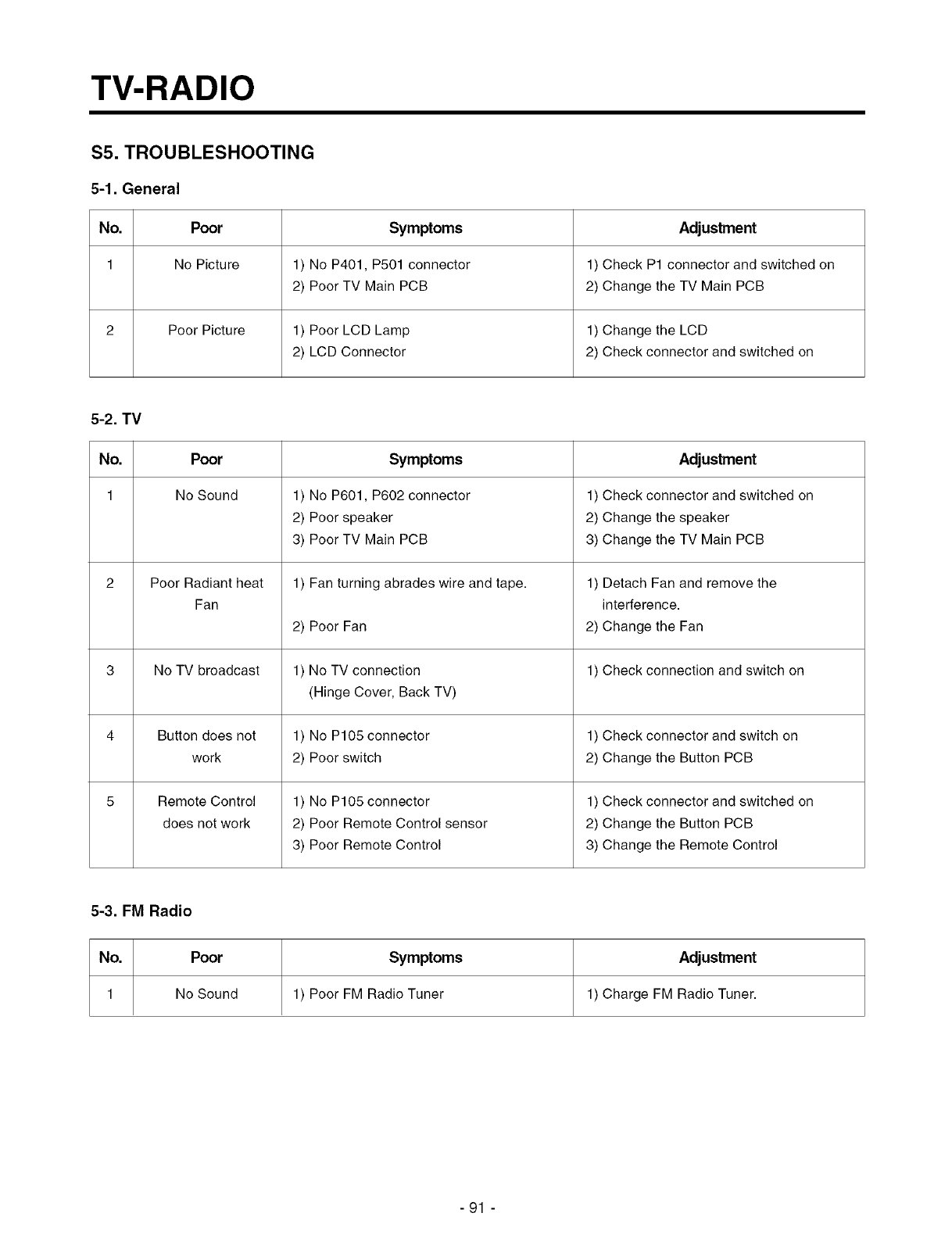

$5. TROUBLESHOOTING
5-1. General
No. Poor Symptoms Adjustment
1 No Picture 1) No P401, P501 connector 1) Check P1 connector and switched on
2) Poor TV Main PCB 2) Change the TV Main PCB
2 Poor Picture 1) Poor LCD Lamp 1) Change the LCD
2) LCD Connector 2) Check connector and switched on
5-2. TV
No. Poor Symptoms Adjustment
1 No Sound 1) No P601, P602 connector 1) Check connector and switched on
2) Poor speaker 2) Change the speaker
3) Poor TV Main PCB 3) Change the TV Main PCB
2 Poor Radiant heat 1) Fan turning abrades wire and tape. 1) Detach Fan and remove the
Fan interference.
2) Poor Fan 2) Change the Fan
3 No TV broadcast 1) No TV connection 1) Check connection and switch on
(Hinge Cover, Back TV)
4 Button does not 1) No P105 connector 1) Check connector and switch on
work 2) Poor switch 2) Change the Button PCB
5 Remote Control 1) No P105 connector 1) Check connector and switched on
does not work 2) Poor Remote Control sensor 2) Change the Button PCB
3) Poor Remote Control 3) Change the Remote Control
5-3. FM Radio
No. Poor Symptoms Adjustment
1 No Sound 1) Poor FM Radio Tuner 1) Charge FM Radio Tuner.
- 91 -
