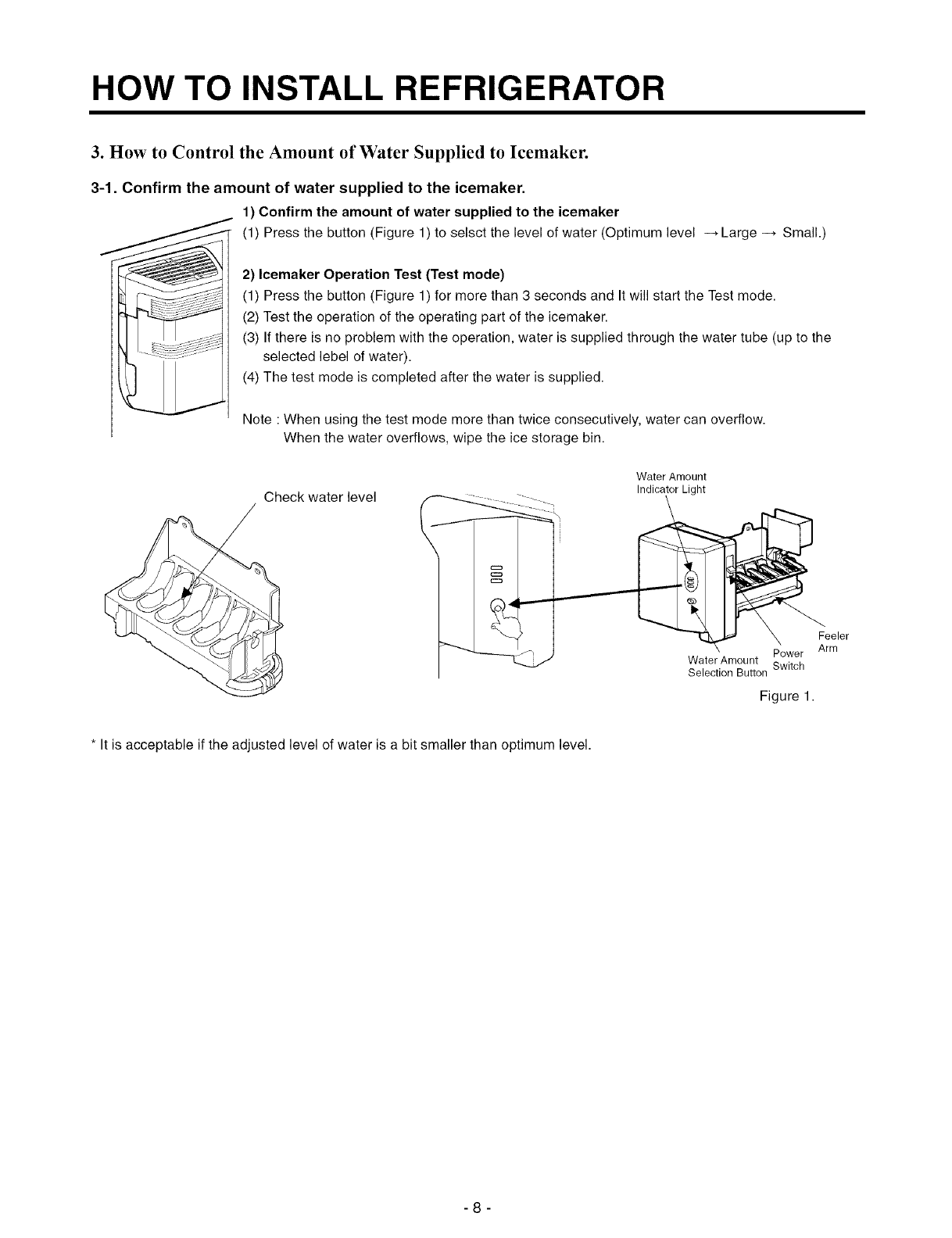

HOW TO INSTALL REFRIGERATOR
3. How to Control the Amount of Water Supplied to Icemaker.
3-1. Confirm the amount of water supplied to the icemaker.
1) Confirm the amount of water supplied to the icemaker
(1) Press the button (Figure 1) to selsct the level of water (Optimum level --* Large -=, Small.)
2) Icemaker Operation Test (Test mode)
(1) Press the button (Figure 1) for more than 3 seconds and It will start the Test mode.
(2) Test the operation of the operating part of the icemaker.
(3) If there is no problem with the operation, water is supplied through the water tube (up to the
selected lebel of water).
(4) The test mode is completed after the water is supplied.
Note : When using the test mode more than twice consecutively, water can overflow.
When the water overflows, wipe the ice storage bin.
Check water level
Water Amount
Indicator Light
_po Feeler
wer Arm
1.........// Water Amount Switch
Selection Button
Figure 1.
* It is acceptable if the adjusted level of water is a bit smaller than optimum level.
