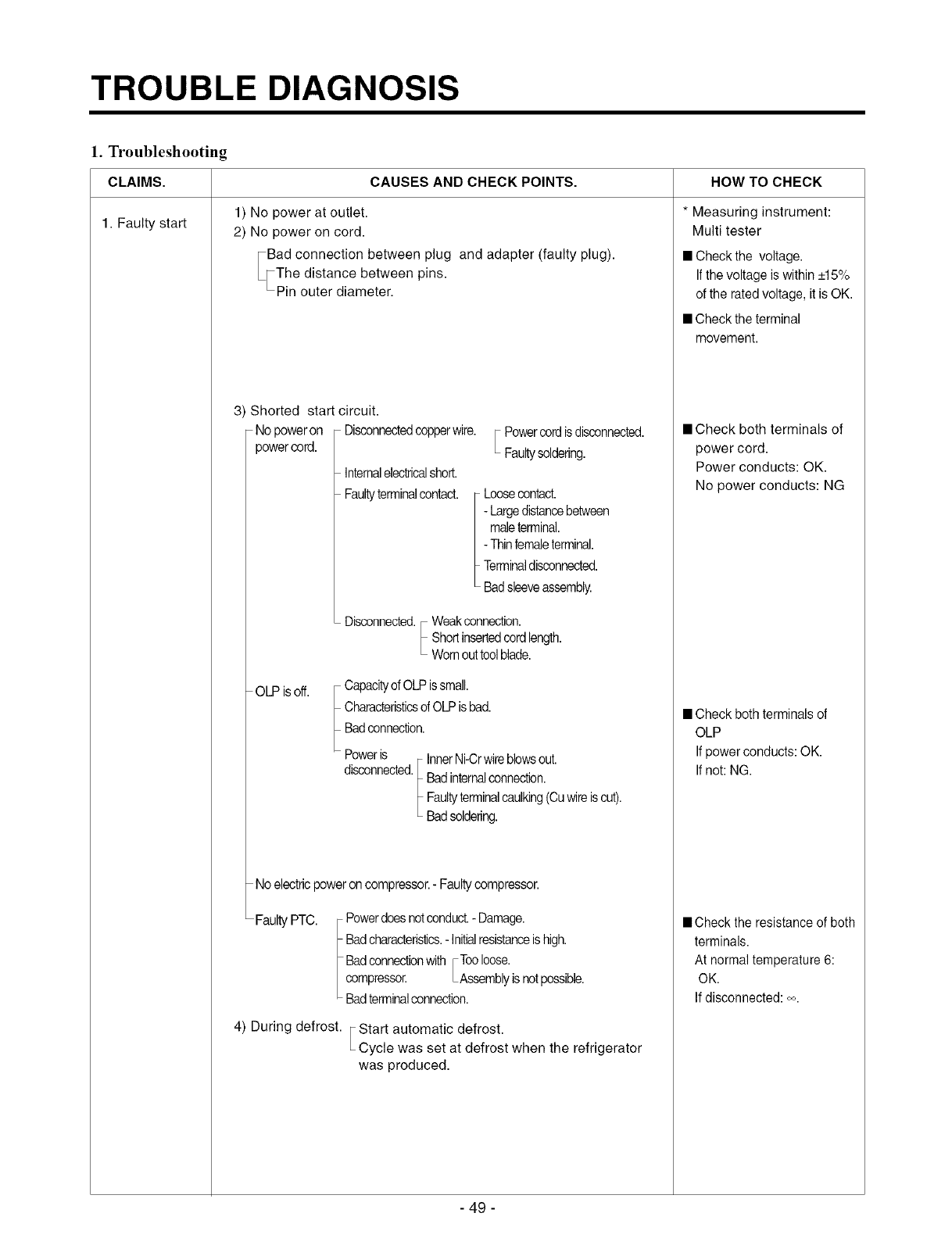

TROUBLE DIAGNOSIS
1. Troubleshooting
CLAIMS. HOW TO CHECK
1. Faulty start
CAUSES AND CHECK POINTS.
1) No power at outlet.
2) No power on cord.
Bad connection between plug and adapter (faulty plug).
_The distance between pins.
LPin outer diameter.
powercord.
Internalelectricalshort.
Faultyterminalcontact.
3) Shorted start circuit.
No poweron Disconnectedcopperwire. FPowercordisdisconnected.
L
Faultysoldering.
Loosecontact.
- Largedistancebetween
maleterminal.
- Thinfemaleterminal.
Terminaldisconnected.
Badsleeveassembly.
Disconnected.F Weakconnection.
Shortinsertedcordlength.
• Wornouttoolblade.
OLP isoff.
Capacityof OLPis small.
Characteristicsof OLPisbad.
Badconnection.
Poweris
disconnected.
InnerNi-Crwireblowsout.
Badinternalconnection.
Faultyterminalcaulking(Cuwireis cut).
Badsoldering.
No electricpoweron compressor.- Faultycompressor.
FaultyPTC. Powerdoesnotconduct.- Damage.
Badcharacteristics.-Initialresistanceishigh.
Badconnectionwith FTcoloose.
compressor. LAssemblyisnotpossible.
Badterminalconnection.
4) During defrost. F Start automatic defrost.
L
Cycle was set at defrost when the refrigerator
was produced.
* Measuring instrument:
Multi tester
• Check the voltage.
If the voltage is within +15%
of the rated voltage, it is OK.
• Check the terminal
movement.
• Check both terminals of
power cord.
Power conducts: OK.
No power conducts: NG
• Check both terminals of
OLP
If power conducts: OK.
If not: NG.
• Check the resistance of both
terminals.
At normal temperature 6:
OK.
If disconnected: _.
