Samsung Refrigerator Technology Page 32

Workshop Manuals
Defrosting Troubleshooting Part 2
Enter the Forced Mode per instructions

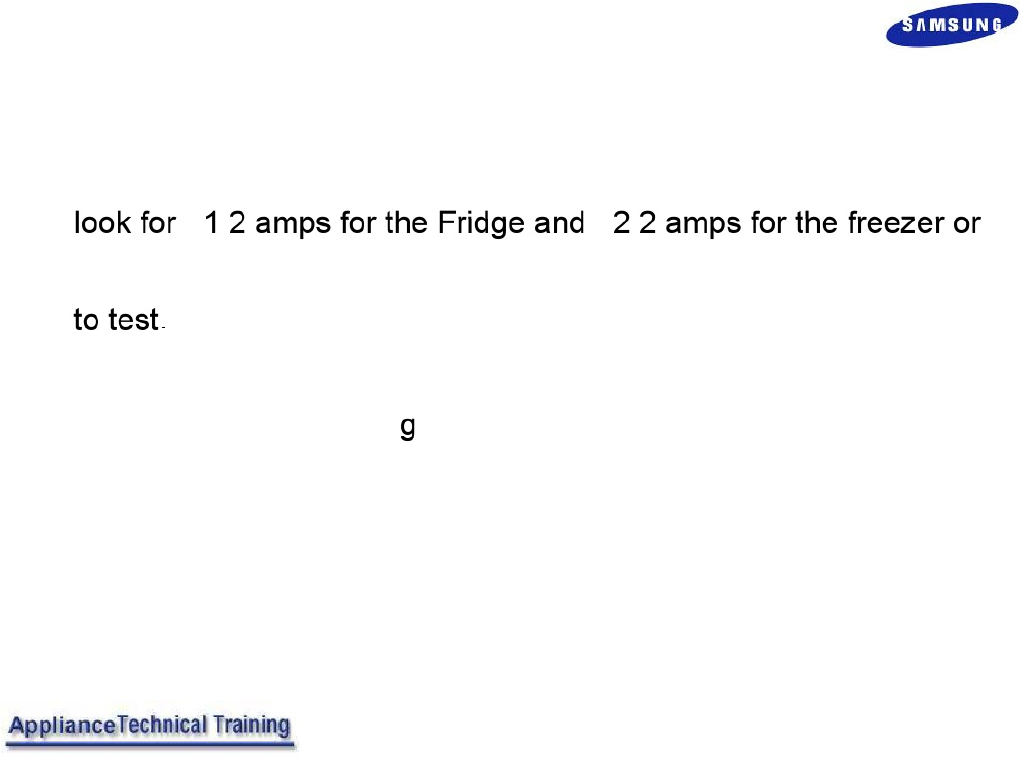

•Check heater circuit amperage at the Main PCB or A/C line;
~. ~.
3.4 amps total.
NOTE:NOTE: If compartment is warm, you only have about 90 seconds
.
•Freezer Freezer - Check service manual for connector and wire color
code for the model bein serviced.
•FridgeFridge - Check service manual for connector and wire color code
for the model being serviced.
•
Low Current draw?Low Current draw?
Check individual defrost circuits, if one is low
check for open defrost heater
•No Current draw?No Current draw?Check voltages and resistances next.
