Samsung Refrigerator Technology Page 52

Workshop Manuals

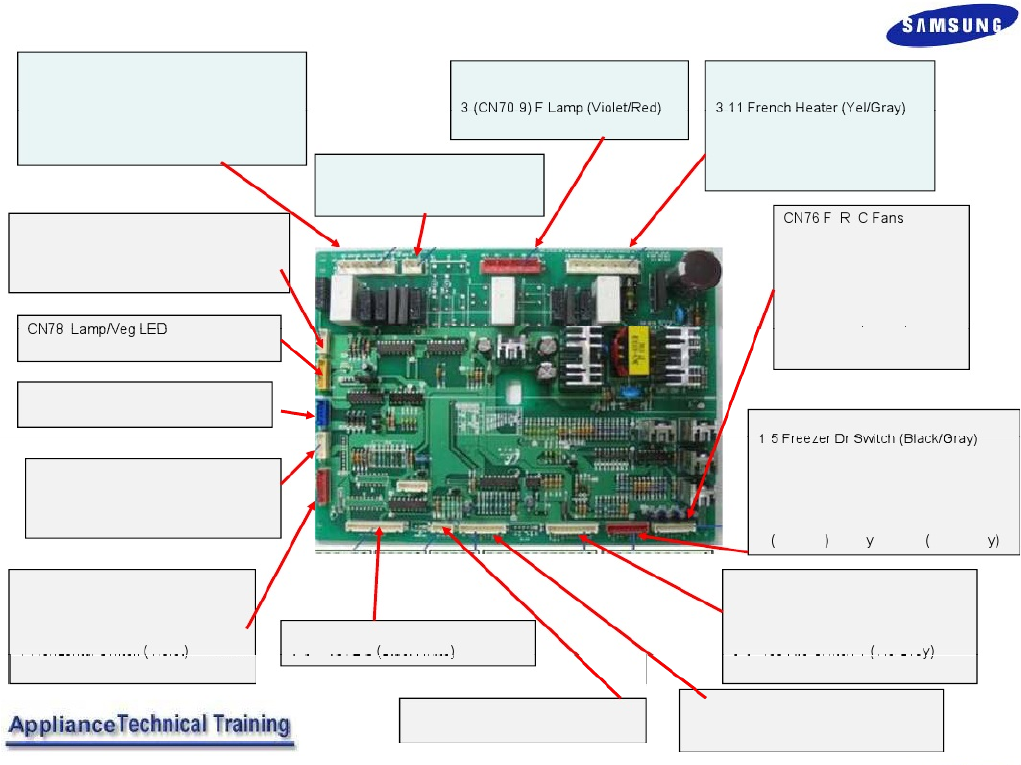

Model : RFG 294 **, RFG295**, RFG299**Model : RFG 294 **, RFG295**, RFG299**Not all Connectors and pins used on all modelsNot all Connectors and pins used on all models
CN74 A/C Load
1-(CN70-9) Cube Solenoid (Yel/Red)
3-(CN70-9) Auger Motor (Pink/Red)
CN71
1-(CN70-9) R Lamps (Blue/Red)
- -
CN70
1-11 Disp Heater (Black/Gray)
-
5-(CN70-9) Dispenser Valve (W/Blk-Red)
7-(CN70-9) Ice Maker Valve (Vio/Red)
9-(CN70-9) Ice Cover Route (Blue/Red)
9 Heater Common (Orange)
5- (CN71-9) R Defrost (Wht/Org)
7- (CN71-9) F Defrost (Brn/Org)
9- L1 (Red)
10- N (Gray)
CN73
1-(CN70-9) I/M Heater (Brn/Red)
3-(CN70-9) I/M Motor (Wht/Red)
CN31 Sensor
1-4 Ambient Sensor (White/White)
2-(CN90-8) 5VDC to I/M (Red/SkyBlu)
3-(CN76-1) Ice Room Sensor (Org/Gray)
, ,
2-1 Ice Room Fan (Blk/Gry)
3-1 F Fan (Yellow/Gray)
4-1 R Fan (Orange/Gray)
5 C Fan (SkyBlue/Gray)
6 Ice Room Fan FG (Pink)
7 F Fan FG (Brown)
CN30 Sensors & Switches
4-7 +13VDC (Red/Gray)
8 R Fan FG (Red)
9 C Fan FG (Blue)
CN77 Stepper Motor
1 +13VDC (Red)
-
2-(CN50-7) R Door Switch (Vio/Gray)
3-(CN76-1) F Sensor (Red/Gray)
4-(CN76-1) F Def Sensor (Org/Gray)
6-(CN76-1) R Sensor (White/Gray)
8-(CN76-1) R Def Sensor (SkyBlu/Gry)
9-CN76-1 Pantr Sensor W/Blk-Gr
CN91 Pantry Room Damper
1-2 Damper Heater 12VDC (Blk/Brn)
3-4 Damper Motor (White/Blue)
5-6 Damper Motor (Yel/Red)
CN51 Pantry Room
7-5+13VDCBlue/White
CN90 Ice Maker
4-8 Eject Sensor (White/SkyBlu)
5-8 Test Switch 5VDC (Gry/SkyBlu)
6 Full Switch (Blue)
7 HorizontalSwitchViolet
CN50 Display
4-6 +13 VDC (Orange/Pink)
5-6 +5 VDC (Yellow/Pink)
8-6 Ice/Water Switch (Blue/Pink)
9-6Ice Rte Switch1Vio/Gra
68
8 Ground (Sky Blue)
CN79
1-2 Photosynthesis Module (Blk/Brn)
10-6 Water Tank Heater (White/Pink)
10-6 Ice Rte Switch 2 (White/Gray)
CN75
To Comp Inverter Board
