Lg Lsx22423W Page 12

Workshop Manuals

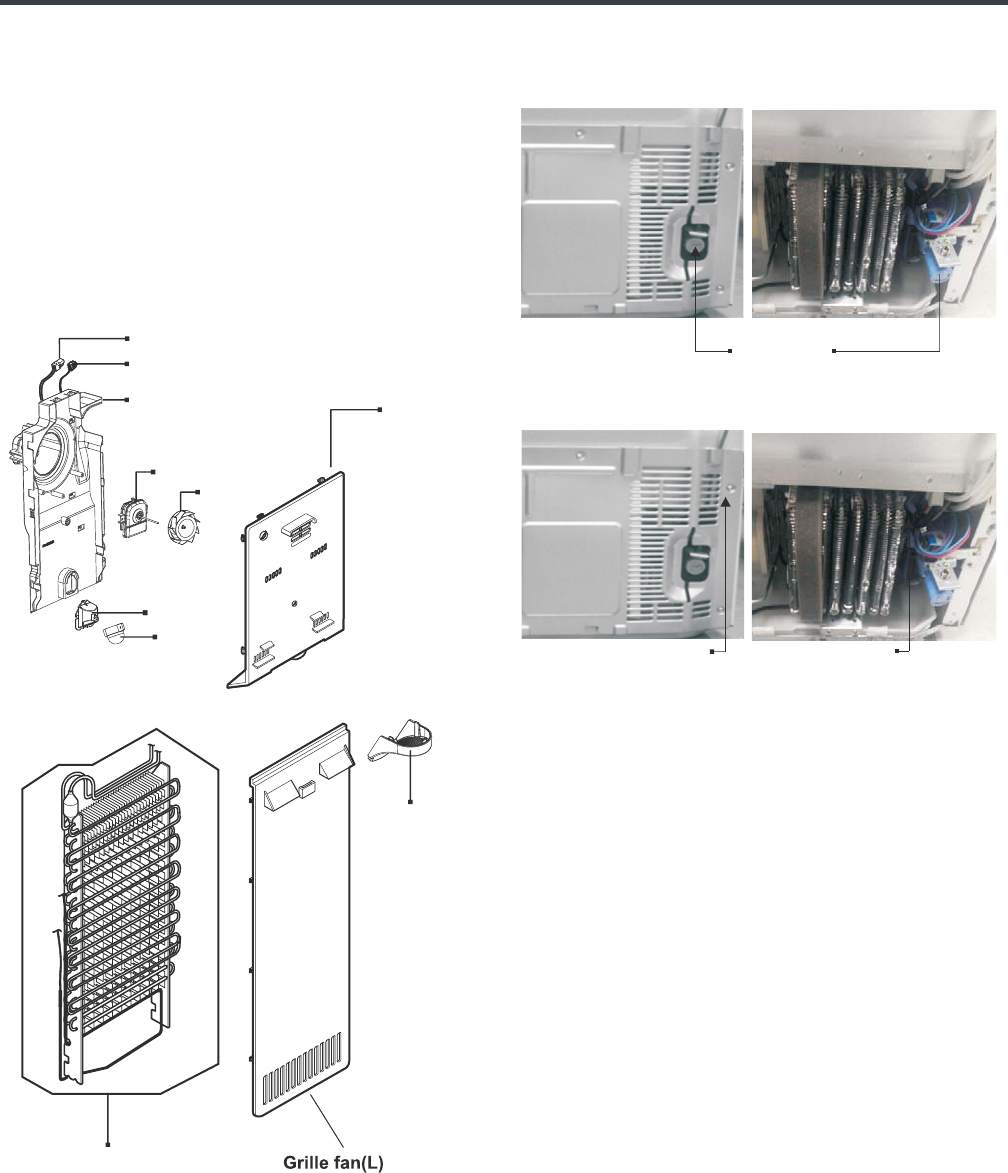

Shroud F(U)
Housing B
Housing A
Grille Fan
(U)
Motor
Fan
Bracket
LED
Cover Lamp
Evaporator
1. Lock the water being supplied. Then separate the water
connection connected to the water valve.
2. Separate the cover back MC and valve screw.
Water Valve
Valve Screw
Cover Back M/C
5. FAN SHROUD GRILLE
1. Loosen one screw with a screwdriver blade.
2. Disassembly of an upper grille fan: Hold upper part of an
upper grille fan (U) and pull forward carefully.
3. Disassembly of a lower grille fan: Hold upper part of a
lower grille fan and pull forward carefully.
4. Disassembly of an upper freezer shroud: Hold lower part,
pull forward and disconnect housing A and B.
5. Check for foam sticking conditions around a shroud,
upper freezer and lower freezer during assembling. If
damaged, torn, or badly stuck, assemble with a new one
afer sealing well.
