Lg Lsx22423W Page 19

Workshop Manuals

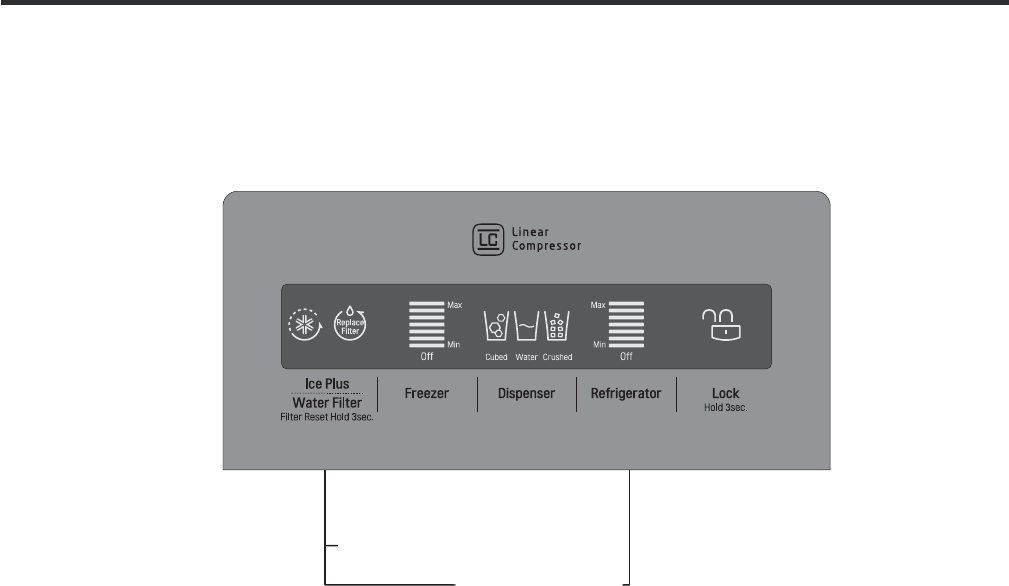

1-1. Display Function
1-2. Display OFF Mode
1-3. Demonstration Mode (OFF Mode)
It places display in standby mode until any door is opened or any button is pressed.
Press FREEZER and ICE PLUS buttons simultaneously to turn ON all leds and 5 seconds after, these will turn OFF with the
recognition sound of “Ding~” (Be sure press both buttons for this to work).
Once the mode activates, all leds are always OFF except to dispensing icon (This depends on last selection dispensed). To
deactivate this mode, perform the same sequence used for activation.
1) When the appliance is plugged in, it is set to 37°F for refrigerator and 0°F for freezer. You can adjust the Refrigerator and
the Freezer control temperature by pressing the Freezer/Refrigerator button.
2) When the power initially applied or restored after a power failure, it is set to the previously controlled temperature.
Display
OFF
Mode
Demonstration
Mode
1) Any door must be opened to enter in this mode
2) To active this mode press and hold Ice Plus and Refrigerator button over 5 seconds.
3) The display will show “OFF”.
4) In this mode all loads are turned off(Compressor, Heater , Fans ,etc)
5) Lamps and Dispenser Functions works normally
6) To exit Demonstration mode open any Door the press and hold Ice Plus and Refrigerator button over 5 seconds Display
return to normal mode
