7. WAY VALVE SERVICE
? The 3 Way valve has plastic parts inside, so always wrap it with a wet cloth before servicing when using a torch.
1) Always replace the 3 way valve if there is a leak at any one of the 3 tubes coming from it.
2) Service in replacement of valve (valve failure) Perform service in the same method as above.

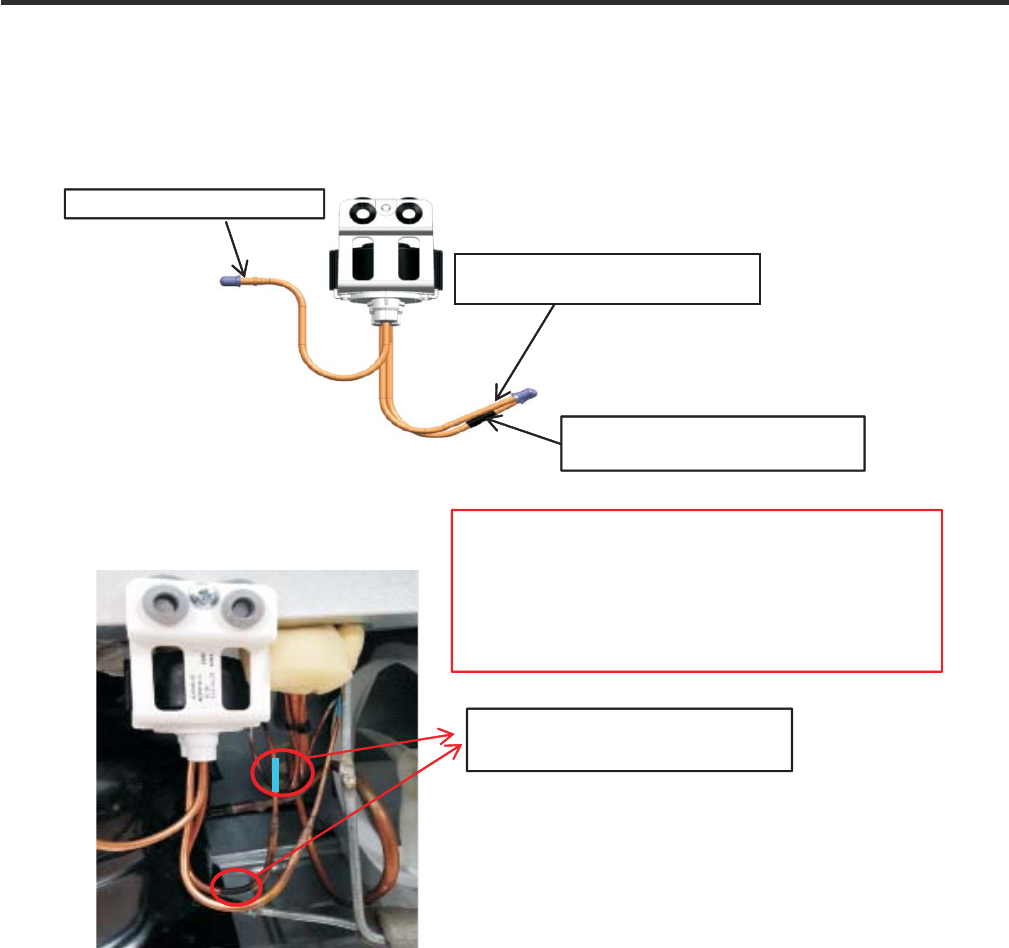

Ⓒ : ID 0.9 capillary tube side.
(Refrigerant outlet)
Ⓐ
:Drier side(Refrigerant Inlet)
Ⓑ :ID 0.7 capillary tube side.
(Refrigerant outlet)
Connect Ⓒ with ID 0.9 capillary tube.
1. Connect Ⓐ with drier.
2. Connect
Ⓑ with ID 0.7 capillary tube.
3. Connect
Ⓒ with ID 0.9 capillary tube.
※ ID 0.9 capillary tube is marked by sky blue tube.
Ⓒ is marked by black tube.
Note: Before processing the vacuum, the 3 way valve status
should be “both-open”.
You can make the 3 way valve “both-open” following as
below.
1. Turn the refrigerator on, and open the Fresh food
door.(Ref Door).
2. Keep Opening the Fresh food door(Ref door), press 2
buttons “Ice plus(or Ultra Ice) and Ref. temp” on display for
3sec.
3. “OFF” will be shown on the display. (Demo mode : both-
open status).
4. Disconnect 3 way valve housing.
5. Turn the refrigerator off and proceed the vacuum.
6. after recharging the gas, connect 3 way valve housing.
