Ex) “LOCK”
Function OFF
Function ON
Ex) “LOCK”
In initial Power OFF
/ Filter RESET
Replace indicator
light on

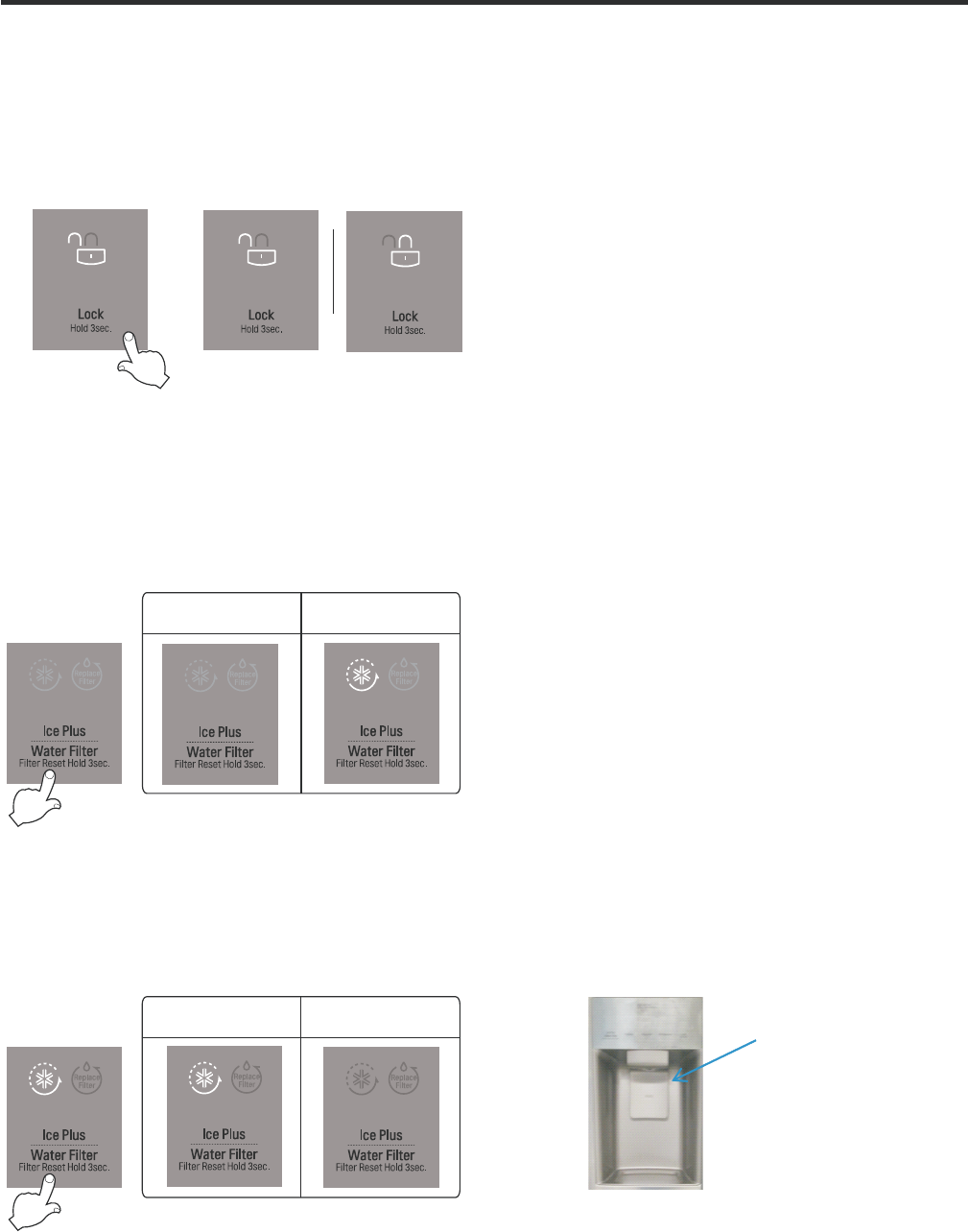

1-4. Key Lock Button (dispenser and display lock)
1) When the refrigerator is first turned on, the buttons are not locked. The display panel shows the padlock unlocked icon.
2) To lock the display, the dispenser, and the control panel, press, and hold the LOCK button for 3 seconds. The locked pad
lock icon is displayed.
3) The LOCK button is the only control feature that remains active in the locked state. The buzzer sound, other control
buttons, and the dispenser are deactivated.
4) To release from the locked state, press and hold the LOCK button again for 3 seconds.
1-5. Filter cartridge status reset button
1) There is a replacement indicator for filter cartridge on the dispenser.
2) Water filter needs replacement once six months.
3) Initial filter icon condition is OFF.
4) After six months of use, change filter icon LED will be turned ON.
5) Once filter cartridge has been replaced, press and hold Ice Plus/Water Filter button for more than 3 seconds.
6) Icon LED will be turned OFF by a 6 months period.
1-6. Ice Plus selection
Please select this function for quick freezing.
1) Function is repeat Ice Plus icon whenever pressing Ice Plus
button.
2) Ice Plus function automatically turns off after a fixed time
passes.
In initial Power On
/ Filter RESET
Replace indicator
light on
1-7. Dispenser Light
1) When dispenser is operated, DISPENSER LIGHT is ON.
Dispenser
light
